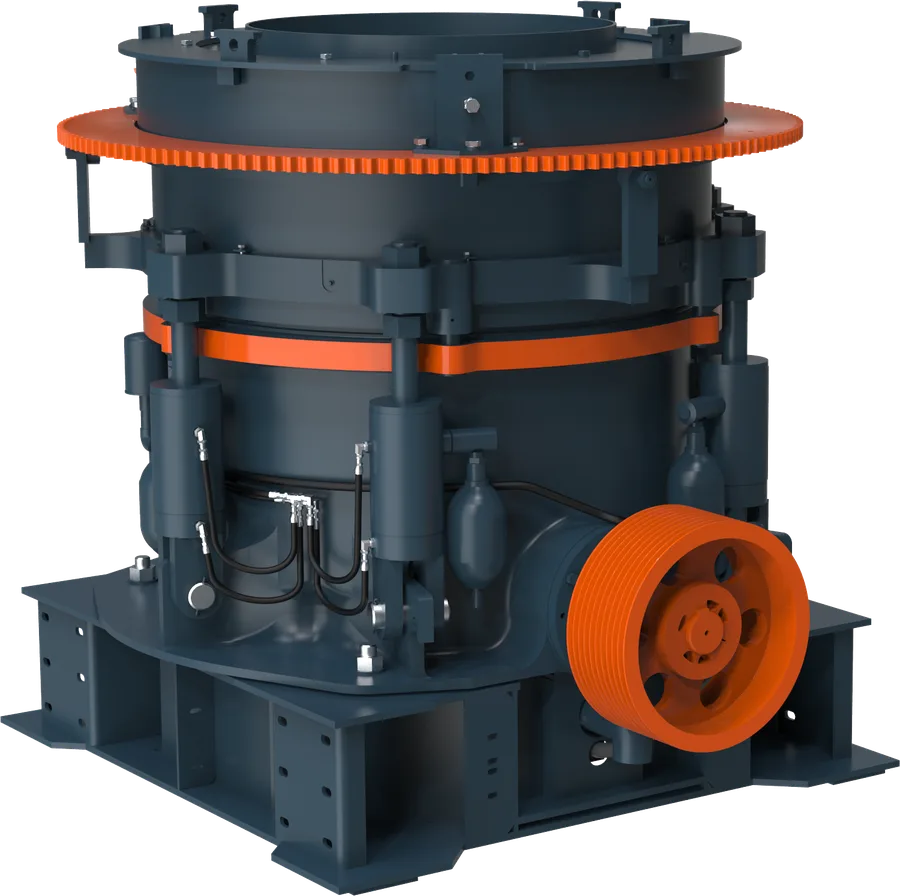

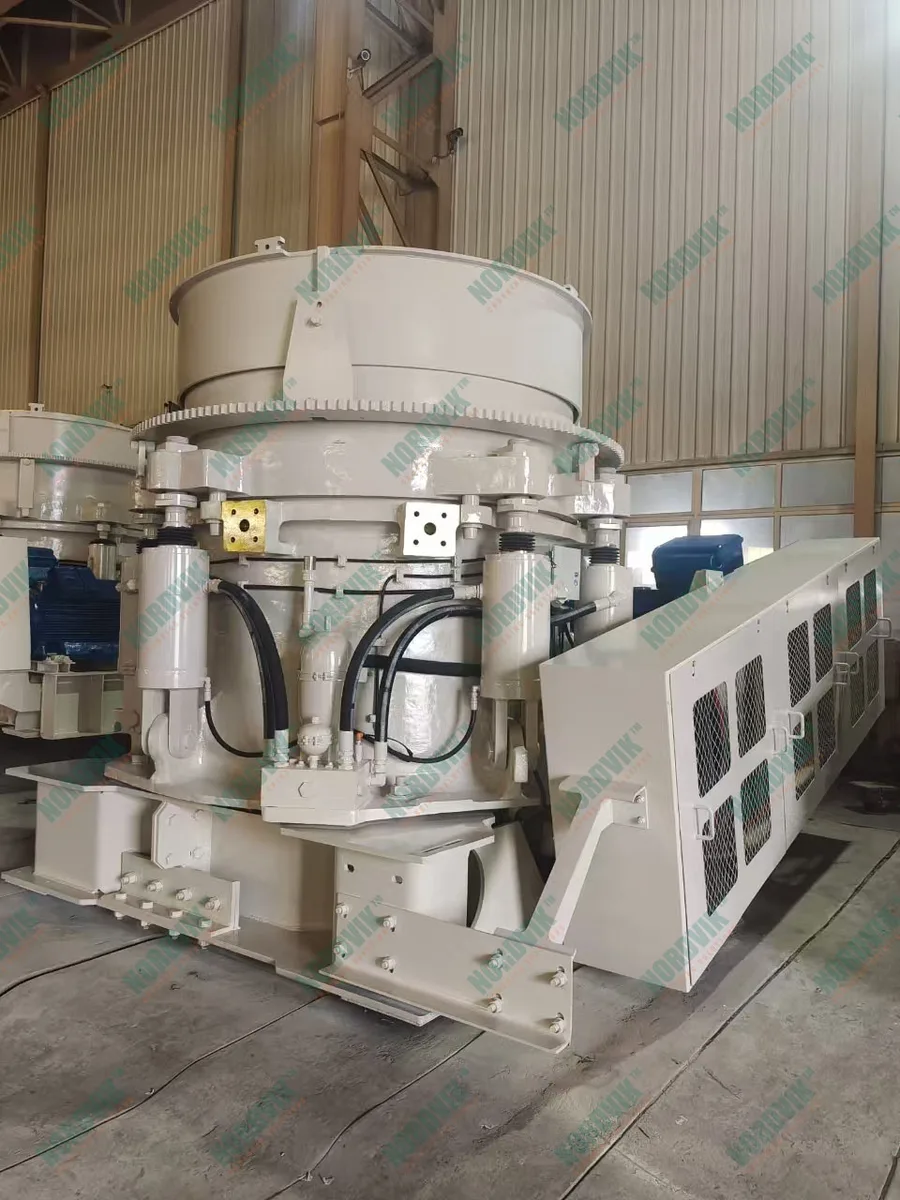

NORDVIK PHP Series Cone Crusher

Name: NORDVIK PHP Series Cone Crusher
Brand: NORDVIK

High-capacity multi-cylinder cone crushing

The NORDVIK PHP series multi-cylinder hydraulic cone crusher delivers high capacity and a fine, cubical product: 45 – 790 t/h with feed up to 351 mm and 90 – 500 kW installed power. Multiple hydraulic cylinders provide both setting adjustment and iron release, while the laminated crushing action produces superior particle shape for aggregates and mineral processing.

45 – 790 t/h

Capacity

up to 351 mm

Max feed

90 – 500 kW

Power

Request a quote Contact sales

1000+ installations

Proven in mines and quarries across 15+ countries.

OEM-grade quality

Wear and spare parts made to original specifications and metallurgy.

24 h response

Quotation with specs, pricing and delivery time within one working day.

Lifetime support

Spare parts, service and commissioning support for the machine's whole life.

Key Features

Multi-cylinder hydraulics — Multiple hydraulic cylinders give faster tramp release and more precise setting control than spring or single-cylinder designs.
Laminated crushing action — The optimized chamber promotes inter-particle crushing, producing cubical product with fewer flaky particles.
High capacity density — Higher speed and stroke combinations deliver more tonnes per machine size — up to 790 t/h.
Fixed mainshaft design — The mainshaft is fixed and the head gyrates on it, allowing a heavier shaft and higher crushing forces.
Quick liner change — All liners are replaced from the top without backing compound on key parts, cutting service time dramatically.
Full automation integration — Designed for the NORDVIK ACS: power, pressure and setting are continuously optimized to hold product size.

PHP Series Technical Specifications

Model	Head diameter (mm)	Power (kW)	Weight (kg)	Max feed (mm)	Capacity (t/h)
PHP3	1,000	250	16,100	220	94 – 388
PHP4	1,120	315	24,200	252	135 – 555
PHP5	1,250	370	29,000	317	158 – 600
PHP6	1,400	500	44,550	331	220 – 790
PHP100	735	90	6,470	150	45 – 155
PHP200	940	132	12,160	185	90 – 250
PHP300	1,120	220	18,100	241	115 – 440
PHP400	1,320	315	25,600	304	140 – 630
PHP500	1,520	355	37,000	351	175 – 790

Capacity = published range across all closed side settings; it depends on feed gradation and material properties.

How it works

Working Principle

The PHP multi-cylinder crusher gyrates its crushing head on a fixed mainshaft via an eccentric. Feed is crushed between mantle and concave by compression and by inter-particle (laminated) action inside the full chamber. A ring of hydraulic cylinders clamps the adjustment ring at the selected setting, releases instantly and uniformly when tramp iron or an overload occurs, and re-clamps automatically — keeping both the crusher and the product size protected.

Applications

Secondary & tertiary ore crushing

High-capacity reduction ahead of grinding mills in iron, copper and gold processing plants.

Premium aggregates

Cubical, well-graded products for high-spec concrete and asphalt production.

Manufactured sand

Fine and extra-fine cavities feed VSI crushers or produce sand directly.

Large quarries

Continuous high-tonnage duty producing road base, ballast and chip products.

Hydropower & construction

Reliable medium-fine crushing for dam and infrastructure aggregate plants.

Materials

Basalt, granite, marble, gneiss, quartzite, sandstone, limestone, iron ore, copper ore, molybdenum ore and other hard and medium-hard rocks.

FAQ

Frequently Asked Questions

What makes a multi-cylinder crusher different from single-cylinder?

A ring of hydraulic cylinders clamps the bowl at the setting, giving more precise control, faster tramp release and higher crushing force — suiting high-capacity fine crushing.

What is the finest product a PHP can make?

With F/EF cavities at 8 – 10 mm CSS, the PHP produces fine chip and sand feedstock; the ACS holds the setting automatically as liners wear.

How quickly can liners be changed?

All liners are accessible from the top of the crusher. A trained crew typically completes a full liner change in a single shift.

Which model suits a 400 t/h tertiary duty?

The PHP300 or PHP400 depending on feed size and target CSS — send your gradation data and our engineers will confirm the selection.

Does the PHP need special foundations?

Standard reinforced concrete foundations are sufficient; dynamic loads are low thanks to the balanced design. Anchor drawings are supplied with the crusher.
