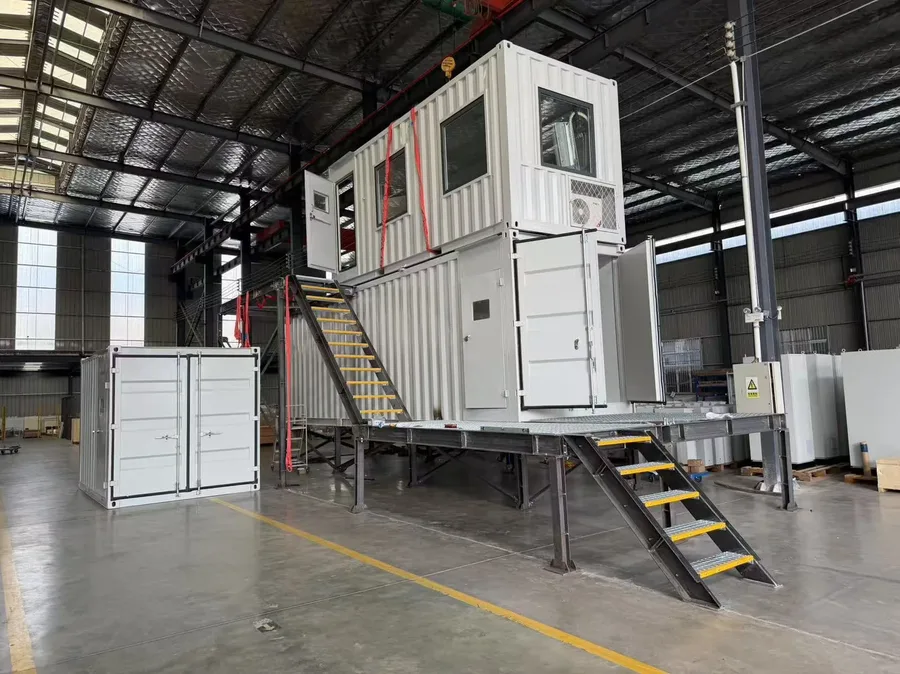

NORDVIK Modular Centralized Control Room

• Containerized e-house for mining crushing plant control — Factory-assembled shipping-container modules form a single- or two-storey control room, with stair access, doors, windows and climate control engineered for site duty.
• Centralized plant supervision — One control room for the entire crushing and screening line — crushers, feeders, screens, conveyors and auxiliaries monitored and commanded from a single operator station.
• Integrated MCC and power distribution — Motor control centres and power distribution for the plant sit inside or beside the module, shortening cable runs and simplifying commissioning.
• HMI / SCADA ready — Designed for the plant PLC, HMI and SCADA — including NORDVIK ACS signals — so operators see process status, alarms and production trends in real time.
• Fast transport and install — Modules travel as standard containers, mount on steel frames or foundations, and connect with plug-in power and network interfaces for rapid plant start-up on the next pad.
• Operator comfort and safety — Climate control, clear sightlines, labelled panels and safe stair and platform access keep operators productive through long shifts in mining and quarry conditions.

All brand names, model names, photos and marks mentioned are owned by their respective manufacturers. Luoyang Songju Industrial Equipment Co., Ltd. (NORDVIK®) has no affiliation with the original equipment manufacturers. These terms are used for identification purposes only and do not indicate affiliation with or approval by the OEM. All equipment shown is manufactured by and warranted by Luoyang Songju Industrial Equipment Co., Ltd. (NORDVIK®).

The modular control room is the brain of the crushing plant. Field sensors and motor starters feed the MCC and the plant PLC; the operator HMI presents line status, interlocking and production rates; and the controller starts, stops and protects every machine in the correct sequence. On NORDVIK lines the room also hosts ACS interfaces, so crusher setting, load and lubrication stay inside safe limits without constant manual intervention. The same package serves a fixed mining crushing plant or a relocatable mobile crushing plant: disconnect, transport the container, and reconnect power and network on the next pad.

• One view of the whole line — Operators see crushers, screens and conveyors together, which cuts response time when a feeder stalls or a screen blinds.
• Safer interlocking — Start and stop sequences and emergency stops are managed from a controlled environment, not from scattered local panels alone.
• Cleaner commissioning — Factory wiring and labelled terminations reduce site cabling errors on multi-machine plants.
• Better for high tonnage — At 700 t/h and above, continuous supervision from a central room keeps utilization high and unplanned stops short.

Modules can be configured as operator-only rooms, combined operator and MCC e-houses, or stacked two-storey packages with stair access and climate control.

Layouts follow your flowsheet — primary gyratory or jaw, secondary and tertiary cones, screens and stockpiling — and can ship with the matching NORDVIK control cabinets and ACS already integrated for mobile crushing plant automation or a fixed mining line.
